Baghouse Dust Collector
Qingneng Machinery baghouse dust collectors are designed for cement, minerals, building materials, metallurgy, woodworking and other demanding dust control applications. The system can be configured with pulse-jet cleaning, offline maintenance chambers, customized filter bags and project-specific duct connections.
Product Overview
Qingneng Machinery baghouse dust collectors are designed for cement, minerals, building materials, metallurgy, woodworking and other demanding dust control applications. The system can be configured with pulse-jet cleaning, offline maintenance chambers, customized filter bags and project-specific duct connections.
Suitable Industries
Cement productionMineral crushingBuilding materialsFoundry and metallurgy
Typical Applications
- Silo venting
- Conveyor transfer points
- Packing machine dust control
- Kiln tail dust collection
Key Features
- Pulse-jet cleaning with optional offline chamber design for easier maintenance during continuous operation.
- Filter bag material can be selected according to temperature, moisture, chemical properties and emission target.

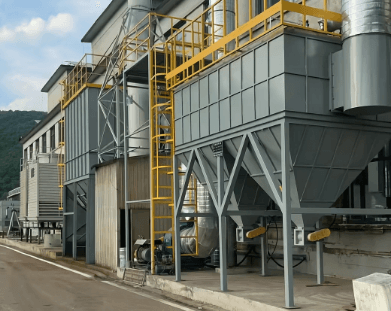

- Sealed housing, reinforced hopper and access platform options support long-term industrial use.
- PLC control, differential pressure monitoring, level alarms and remote signal interfaces are available.
Reference Specifications
| Airflow range | 8,000 - 250,000 m3/h |
|---|---|
| Filtration velocity | 0.8 - 1.2 m/min, adjusted by dust load |
| Emission target | < 20 mg/Nm3 with proper filter media |
| Cleaning method | Pulse jet / offline pulse cleaning |
| Temperature range | Up to 260 C with suitable filter bags |
Export Delivery Support
Export packing and container loading plan
English technical datasheet
Remote installation and commissioning checklist
Available Documents
Brochures, datasheets and RFQ checklists can be requested before quotation or used for internal project review.
Baghouse dust collector brochure
Filter bag selection sheet
Installation foundation checklist
Request a Technical Quote
If you already know airflow, dust type, temperature, installation space or voltage standard, send the details and we will prepare a more accurate recommendation.
Direct Contact
Get a Quote for Baghouse Dust Collector
Send your working condition directly by WhatsApp or e-mail. Our team will review the application and reply with a suitable configuration direction.
Please include product type, airflow, dust type, temperature, installation country, voltage and any site photos or drawings if available.
